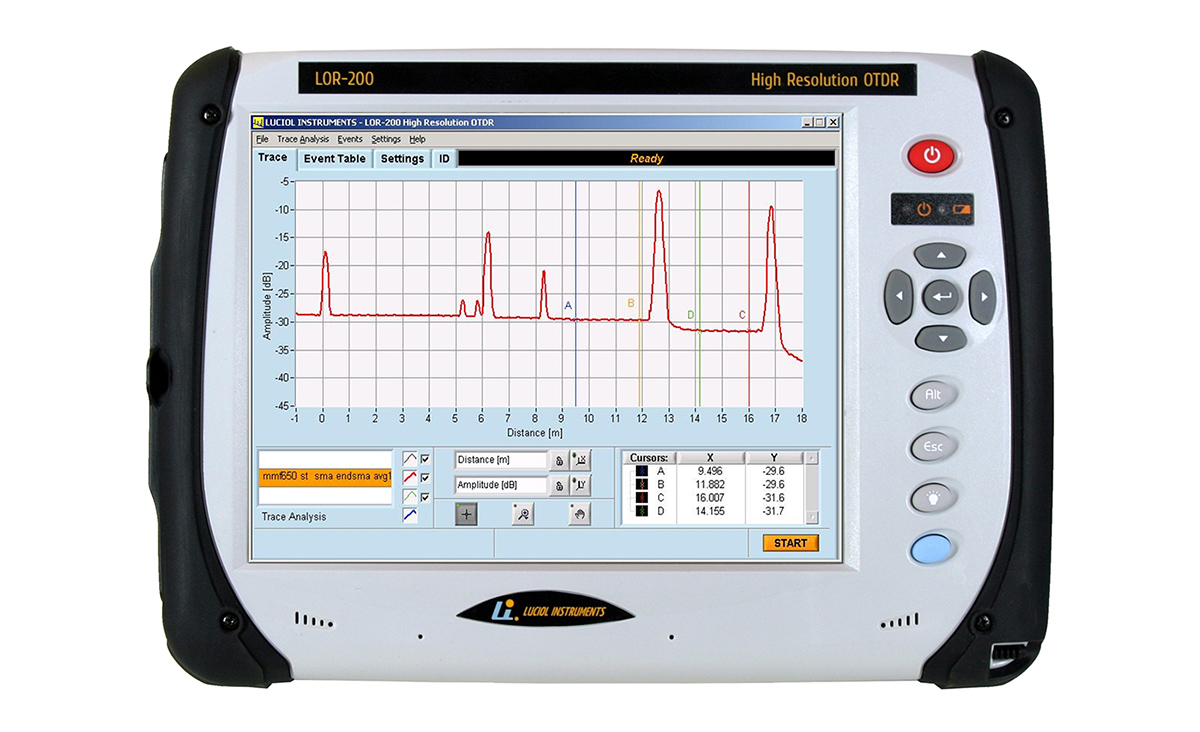

Luciol LOR-200/220 High Resolution OTDR
Benefit from sub-centimetre accuracy with our high-resolution, photon counting OTDR.
Your go-to OTDR for precision fault location, sensor development, and fibre characterisation for applications in harsh and difficult to access locations.
Designed for:
- Aviation
- Rail
- Military
- Maritime
- Oil/Gas
- FTTx/PON
- Data centres
- Fibre sensor development
- Smart structures
Not to be confused with telecom OTDRs that locate faults with around 1.5 metre accuracy, our Luciol OTDRs provide sub-centimetre accuracy – making them the de-facto OTDR for applications that require precise accuracy to reduce downtime and the inevitable associated costs.
Luciol OTDR applications
Applications for Luciol OTDRs include FTTx/PON, fibre sensor development, production testing of fibre lasers, testing short fibre assemblies, and in demanding applications like oil & gas where high resolution is required at the end of a long undersea cable to determine whether an issue is in the wet or dry section.
The LOR-220 is the highest resolution instrument of the LOR-200 family, well suited for short range fibre testing in aviation, and similar applications in military and other vehicles. With its 1ns optical pulse width, industry-leading resolution and 10 cm dead-zone, it is optimised for short range fibre assembly testing.
A variety of wavelength options is available, up to 4 different emitters can be integrated in a single module, and the instruments can be supplied for single mode fibre or optimised for use with various multimode fibre types.
The leading civil aircraft manufacturers use the Luciol LOR-220 to test on-board multimode fibres. Through this, they have significantly reduced the time to identify, locate, and remove trouble-spots in their optical links – and are making significant savings as a direct consequence.
Contact us today and start saving time and money with efficient OTDR testing.
The highest resolution OTDR
The Luciol v-OTDR offers the highest resolution of all with its 500fs pulses and original photon counting technique. Not only is the Luciol v-OTDR the best at differentiating two closely spaced events on an optical fibre, it also provides very precise length measurements.
The v-OTDR is available as a custom system for almost all types of optical fibres and wavelengths, including for example Plastic Optical Fibres (POFs) at 650 nm, large core glass fibres, and single mode fibre variants.
The high refresh rate of the instrument allows real-time monitoring of optical fibres. The Luciol OTDR connects to an external PC via its USB interface. User friendly software is provided.
There’s much to consider when selecting the right tool for your fault detection and questions to consider, such as:
- With what type of network are you working?
- Will you be testing single mode or multimode fibre?
- What is the maximum distance you need to test?
